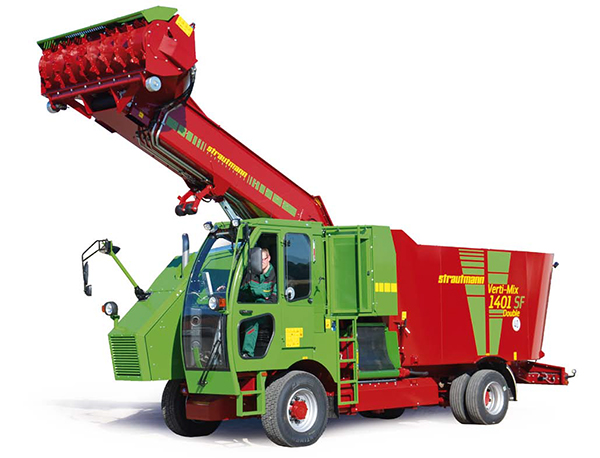

Photograph for illustration purposes - standard specifications may not match those shown.
|
FEATURES OF THE VERTI-MIX DOUBLE AUGER SELF-PROPELLED MIXER WAGON |
CONSTRUCTION |
- The full length chassis is fitted with parabolic suspension together with swivelling axle-rack for continuous 4 wheel contact with the ground
- Large hydraulic drum brakes are fitted front and rear
- 4 wheel drive
- Simple construction, minimal wear and low maintenance
- 20mm of base plate from ST 52-3 for long life
- 8mm thick container wall from ST 52-3 steel for long life
- 16mm thick augers from ST 52-3 steel for long life
|
CAB |
- Air-conditioned
- Radio
- Fully adjustable seat
|
MILLING |
- 2m chopping unit cuts the fodder and rapidly transports it into mixing container via the 600mm wide elevator
- Spiral arrangement head guarantees extremely high loading capacity with minimal impact on the fodder structure
- Mineral feed funnel on conveyor
|
MIXING |
- The Strautmann auger is stepped along the spiral, lifting and loosening the fodder as it mixes, creating a uniform feed ration without over processing. Tests have showed considerably reduced power consumption with the stepped design.
- The new Intensive Mix System (IMS) has an increased number of steps - smaller and more frequent. The steps now occur every 60 degrees of angle (previously 90 degrees). This accelerates the mixing process while using less power and reducing wear on the auger.
- Strautmann’s patented knife adjustment system means the IMS auger can be adapted to specific feed components that need an increased cutting in the mixing process, such as straw and complete round bales.
- The knives are available in two lengths and their working angle can be set according to need - aggressive cutting action or mixing.
- A mix of knife types and angles can be arranged along the auger flight.
- Additional scraper on auger for even and faster emptying
- Auger fitted with stainless steel anti-wear strips reducing auger loss from moist mixes
|
DISCHARGE |
- Front cross-conveyor with side shift and left or right side feed-out
|
CONTROLS |
- Multi-function joystick controls all operating functions
- 10.4” touch screen displays all functions and status information
- ICS (integrated communication system) this terminal is able to display 3 systems (weighing device, machine info terminal and cameras)
- Integrated fault diagnostic system support
- Remote maintenance via modem
- Programmable weighing scales (without or with data transfer)
|
DRIVE TRAIN |
- Powered by a 6-cylinder John Deere motor turbocharged and intercooler 1374kW (178hp)
- Clean-Fix radiator ensures optimum performance of the cooling system when working with very dry and dusty fodder
- 4 Wheel hydrostatic drive (40km road speed)
|
BROCHURE
Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the
manufacturer's website (Strautmann) |
Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
* Tandem axle is standard |
