    Strautmann Livestock Machinery

    Giga Vitesse CFS

      Loading...

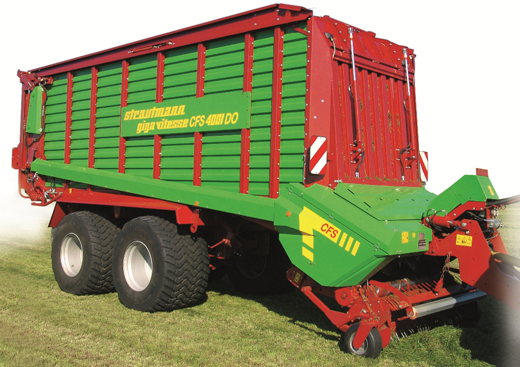

    Strautmann Giga Vitesse CFS Loader Wagon

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE GIGA VITESSE CFS SERIES LOADER WAGON

    PICKUP & CONTINUOUS FLOW SYSTEM (CFS)

    Camless Tines
    • Camless 2.0m wide chain drive pick-up with 6 V-shaped arranged tine bars
    CFS System
    • The Continuious Flow System (CFS) is a patented Strautmann innovation that:
      • Reduces power required, and fuel consumption
      • Increases the crop weight in the wagon
      • Improves knife wear by more uniformly wearing across all knives, not just the central ones
    • CFS accelerator roller is driven by gear-box, through a friction clutch
    • Click here to learn more about Strautmann's CFS Loading System
    Vitesse Guide Wheels
    • Guide roller in front of baffle plate
    • Adjustable pick-up wheels ensuring consistent pick-up in all conditions
    • Additional steel wheels behind pick up to avoid scalping the ground on uneven surfaces
    • Electric connection is available for inoculant sprayer

    FORAGE CUTTER

    Vitesse Rotor
    • Loading rotor 840mm diameter with 8 tine rows, in spiral, for an even driveline load
    • 1640 mm wide continuous feeding and cutting without power peaks
    • Hardox 17mm steel tine plates allows for easy and precise scissor-like cutting
    Giga Vitesse Rotordrive
    • Forage cutter rotor is driven by a reduction gear box
    Giga Vitesse Cutting Unit
    • 45 cutters on a single line for a precise scissor-like cut of 35 mm
    • Blades with double cutting serrated edges can be flipped in-field to give a fresh sharp cutting edge
    • Cutting unit with hydraulic swing-out function via two double-action hydraulic cylinders for release and engagement of blades
    Giga Vitesse Cutting Unit
    • Quick-change system for tool-less installation and replacement of blades in seconds
    Giga Vitesse Knife Protection
    • Patented individual blade protection system
    • In other products, hard debris, such as stones, are pushed along the length of the knife edge, increasing wear
    • With the Strautmann system, contact at any point on the knife causes the individual knife to be ejected
    • Click here to learn more about Strautmann's Knife Protection System

    WAGON

    Giga Vitesse Moving Floor
    • Front loading gate with integrated automatic loading mechanism, detects the rise of the forage on the front wall and automatically advances the floor to uniformly fill the wagon.
    • Moving floor is hydraulically driven on both sides with variable speed adjustment in 2 speed ranges:
      • Normal speed is for the loading process
      • The high speed is for cleaning out the wagon on the silage pit/slade
    • Galvanized steel floor for long life and smooth push
    • 4 plate-link high tensile scraper floor chains with high breaking load
    • Automatic floor chain tensioning
    • Heavy Duty hydraulically opening rear door – 2 stage
    • Baffle at the top front gate
    • Lighting for load space

    CHASSIS & DRAWBAR

    Tandem axle wheels
    • Chassis for 26.5” tyres
    • Integrated hydraulic braking (optional Air-brakes)
    Steering Axle
    • Tandem axle with steering - 40 km/h
    • Drawbar with ring hitch or ball hitch (wagon side only)
    • Hydraulic drawbar with double-acting cylinders for greater clearance over the stack
    • Hydraulic accumulator suspension on drawbar reduces shock loads on the tractor during transport for improved perator comfort
    • PTO Shaft with cam clutch and wide angle both sides
    • Road lights, reflectors, signage and drawbar chains to VIC Roads Standards
    • Boogie-chassis with steering axle in series
      • Small pivot point causes the "roll-over-effect" – easy driving and easy roll onto the clamp silage
      • High tension comfort because of the three-coat parabel-tenison

    CONTROLS

    ISO Bus Control Panel
    • ISO-bus operation panel

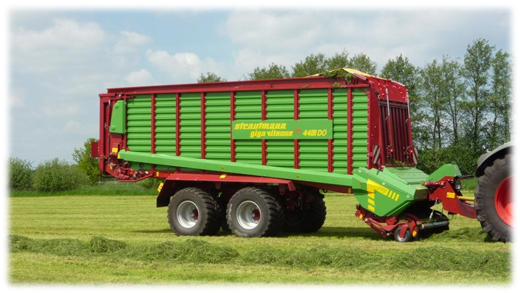

    Strautmann Giga Vitesse CFS Working

    A forage wagon that excites experts and contractors


    SPECIFICATIONS

    Giga-Vitesse
    CFS 3601
    Giga-Vitesse
    CFS 4001
    Giga-Vitesse
    CFS 4401
    Length (m)
    9.28
    10.08
    10.88
    Width (m)
    2.55
    2.55
    2.55
    Height (m)
    3.86
    3.86
    4.00
    True Capacity DIN 11741 (m3)
    34
    38
    42
    Max. Gross weight (standard equipment) (kg)
    20,000
    20,000
    20,000
    No. of blades
    45
    45
    45
    Pick up width (m)
    2.00
    2.00
    2.00
    Tyres (4)
    710/50-26.5
    710/50-26.5
    710/50-26.5
    PTO shaft speed (rpm)
    1,000
    1,000
    1,000
    Power Requirement (kW)
    99
    110
    126
    Power Requirement (hp)
    135
    148
    170

    BROCHURE

    Click this link to download a brochure.
    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (Strautmann)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
