Strautmann Livestock Machinery

Mega Vitesse CFS

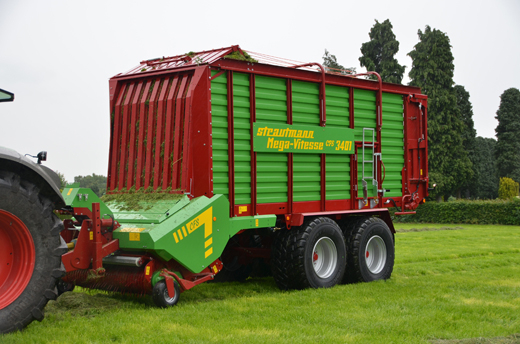

Strautmann Mega Vitesse CFS Loader Wagon

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE MEGA VITESSE CFS SERIES LOADER WAGON

PICKUP & CONTINUOUS FLOW SYSTEM (CFS)

Camless Tines
  • Camless 2.0m wide chain drive pick-up with 6 V-shaped arranged tine bars
CFS System
  • CFS accelerator roller is driven by gear-box, through a friction clutch
  • Click here to learn more about Strautmann's CFS Loading System
Mega Vitesse Guide Wheels
  • Guide roller in front of baffle plate
  • Adjustable pick-up wheels ensuring consistent pick-up in all conditions
  • Additional steel wheels behind pick up
  • Electric connection for inoculant sprayer

FORAGE CUTTER

Mega Vitesse Rotor
  • Loading rotor 840mm diameter with 8 tine rows, in spiral, 1640 mm wide continuous feeding and cutting without power peaks
  • Hardox 17mm steel tine plates allows for easy and precise cutting
Mega Vitesse Rotordrive
  • Rotor driven by gear box
Mega Vitesse Cutting Unit
  • 40 cutters on a single level for a precise cut of 39 mm
  • Blades with double cutting serrated edges
  • Cutting unit with hydraulic swing-out function via two double-action hydraulic cylinders for release and engagement of blades
Mega Vitesse Cutting Unit
  • Quick-change system for tool-less installation and replacement of blades in seconds
Mega Vitesse Knife Protection
  • Patented individual blade protection system
  • Click here to learn more about Strautmann's Knife Protection System

WAGON

Mega Vitesse Moving Floor
  • Loading gate with integrated automatic loading mechanism
  • Moving floor is hydraulically driven on both sides with variable speed adjustment in 2 speed ranges
  • Timber floor
  • High tensile scraper floor chains with high breaking load
  • Automatic floor chain tensioning
  • Heavy Duty hydraulically opening rear door
  • Roof rope kit
  • Lighting for load space

CHASSIS & DRAWBAR

Mega Vitesse Steering Axle
  • Tandem axle with steering - 40 km/h
  • Chassis for 22.5” tyres
  • Hydraulic drawbar with double-acting cylinders for greater clearance over the stack
  • Hydraulic accumulator suspension on drawbar ensuring maximum operator comfort.
  • Integrated hydraulic braking (optional Air-brakes)
  • Drawbar with ring hitch or ball hitch (wagon side only)
  • PTO Shaft with cam clutch and wide angle both sides
  • Road lights, reflectors, signage and drawbar chains to VIC Roads Standards

CONTROLS

ISO Bus Control Panel
  • ISO-bus operation panel

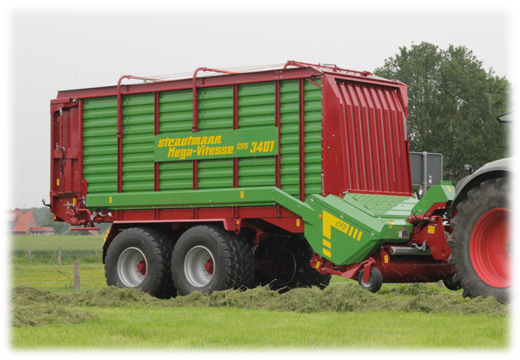

Strautmann Mega Vitesse CFS Working

The economic loader wagon


SPECIFICATIONS

Mega-Vitesse
CFS 3001
Mega-Vitesse
CFS 3401
Mega-Vitesse
CFS 3801
Length (m)
8.49
9.29
10.09
Width (m)
2.55
2.55
2.55
Height (m)
3.99
3.99
3.99
True Capacity DIN 11741 (m3)
28
32
36
Max. Gross weight (standard equipment) (kg)
20,000
20,000
20,000
No. of blades
40
40
40
Pick up width (m)
2.00
2.00
2.00
Tyres (4)
710/40-22.5
710/40-22.5
710/40-22.5
PTO shaft speed (rpm)
1,000
1,000
1,000
Power Requirement (kW)
95
103
110
Power Requirement (hp)
130
140
150

BROCHURE

Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
