German manufactured range of silage harvesting, feeding and manure spreading machinery for Dairy, Beef and general livestock in Australia.

Strautmann Livestock Machinery

Giga Trailer

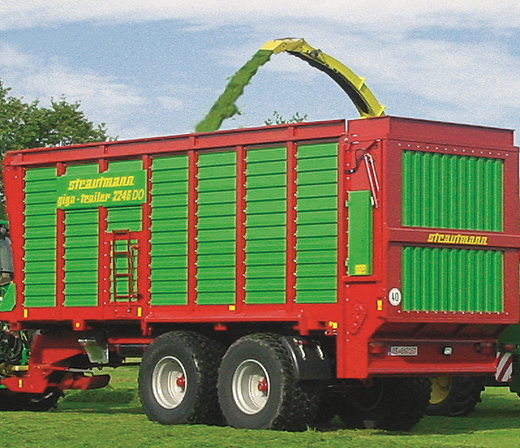

Strautmann Giga Trailer Wagon

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE GIGA TRAILER WAGON

CONSTRUCTION

  • Full steel body & floor
  • Tandem axle
  • Hydraulic tandem axle (standard on 5401 model)
  • 2 speed hydraulic moving floor with drive on both sides
  • 4 plate-link chains
  • Hydraulic brakes (Option Air brakes)
  • Low draw bar with ring hitch and suspension (Optional Scharmueller ball hitch)
  • Hydraulic adjustable front gate
  • Direct connection to tractor (all function)
  • Spring – loaded drawbar

SPECIFICATIONS

Giga-Trailer
4601
Giga-Trailer
4601 DO
Giga-Trailer
5401
Giga-Trailer
5401 DO
Length (m)
9.98
9.98
11.30
11.30
Width (m)
2.55
2.55
2.55
2.55
Height on standard wheels (m)
3.89
3.89
3.89
3.89
True Capacity DIN 11741 (m3)
41
41
48.50
48.50
Gross weight (kg)
24,000
24,000
34,000
34,000
Empty weight (kg)
8,000
8,300
10,800
10,800
No. of Beaters
N/A
2
N/A
2
Tyres
4x710/50-26.5
4x710/50-26.5
6x710/50-26.5
6x710/50-26.5

BROCHURE

Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the  manufacturer's website (Strautmann)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
